Luna 1 NC

403-701 lm | Recessed | Round | Fixed | 1" Aperture

Spec Sheet

D1 LU1NC 03 27 C 5 F WS 0 00 W

Source

Model

Wattage

Kelvin

CRI

Beam

Lens

Color

Driver

Installation

I.P. Rating

D1

LU1NC

3W : 03
7W : 07

2700k : 27
3000k : 30
3500k : 35
4000k : 40
Warm Dim 1800K to 3000K : WD
Tunable White 2700K to 6500K Daylight ?: TD
Tunable White 1800K to 4000K Hospitality ?: TH

90 : C
VeroLux CRI 97+ Contact your sales representative for ordering information. Check for ESD. 10 weeks lead if not in stock.?: D

50° : 5
36° : 3
24° : 2
15° : 1
10° Spot beam, 10° not possible with WD, TH, TD, and RGBW?: S

Frosted : F
Hex Louver + Solite : X
Cross Louver + Solite : L
Prismatic : P
Solite : S
Clear : C
Unspecified Lens Combination : U

Matte White : WS
Matte Black : BK

No Driver : 0
Non-Dimmable : N
ELV Dimmable : E
0-10V Dimmable to 1% : Z
BubblyNet : B
DALI : D
Eldo DMX (Remote-Mount Only Speak with Zaniboni Rep)?: X
Low Voltage CC2CV Price does not include power supply?: V

No Housings Option when product is installed in Low Voltage - Class 2?: 00
Class 2, Non-IC Remote Driver Only?: D0
Retro-Fit Enclosure : R0
Class 1, IC : A0
Class 1, Non-IC : B0
Class 2 Non IC + Retrofit : DR

Wet IP 65 : W

*1 Must have access to driver from above or driver accessible in remote location

Note: Crossed out features are unavailable for the selected configuration. By selecting other options from the left hand columns above, you can view which selections would allow for the desired feature. The power option and the light beam affect the height of the fixture. Check the "Product Height" table under "Dimensions/Drawings" on the spec sheet.

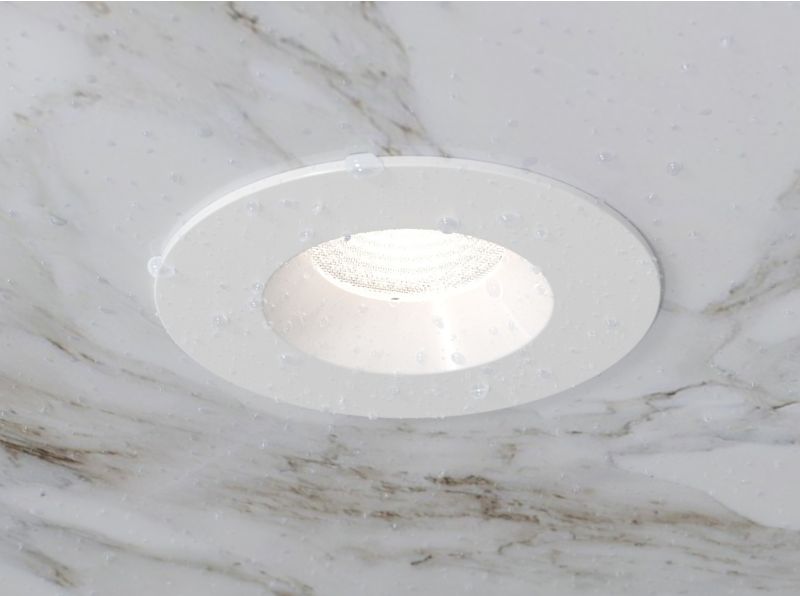

NC for non-conductive trim (also known as dead-front). This is the ideal fixture for steam showers and wet saunas. The LUNA 1 NC's polymeric lens and trim isolate electrically and thermally, the wet and hot environment from the dry and cool plenum. Maximum operating temperature of the Luna 1 NC is 120º F (48.8 Cº).
