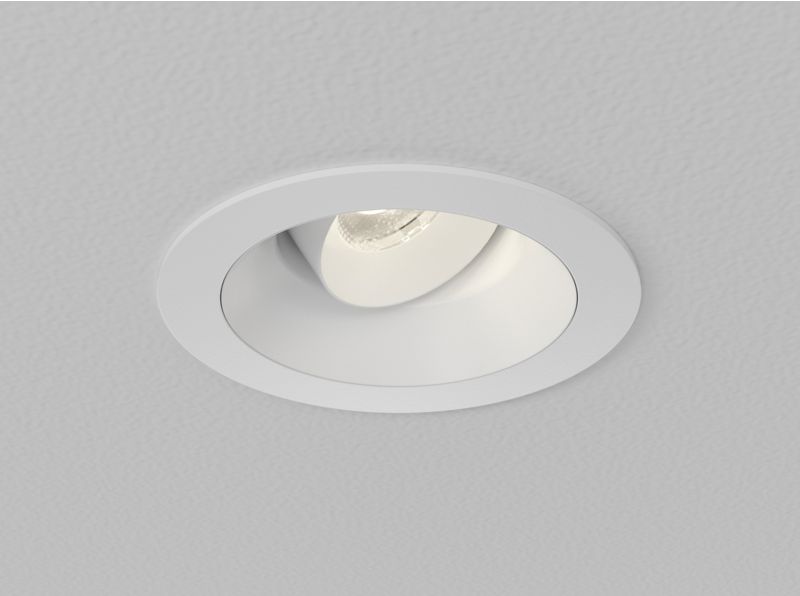

Luna 2 AO

403-701-912 lm | Recessed | Round | Adjustable 30° | 2" Aperture

Spec Sheet

D1 LU2AO 03 24 C 5 F WS 0 00 D

Source

Model

Wattage

Kelvin

CRI

Beam

Lens

Color

Driver

Installation

I.P. Rating

D1

LU2AO

3W : 03
7W : 07
9W : 09

2400k : 24
2700k : 27
3000k : 30
3500k : 35
4000k : 40
Warm Dim 1800K to 3000K Not available with 18W?: WD
RGBW Temporary supply friction, lead times are 6-8 weeks for RGBW chips.?: RW
Tunable White 2700K to 6500K Daylight ?: TD
Tunable White 1800K to 4000K Hospitality ?: TH

90 : C
VeroLux CRI 97+ Contact your sales representative for ordering information. Check for ESD. 10 weeks lead if not in stock.?: D

50° : 5
36° : 3
24° : 2
15° : 1
10° Spot beam, 10° not possible with WD, TH, TD, and RGBW?: S

Frosted : F
Hex Louver + Solite : X
Cross Louver + Solite : L
Prismatic : P
Solite : S
Clear : C
Unspecified Lens Combination : U

Matte White : WS
Matte Black : BK
White Trim / Black Splay : WK
Black Pearl : BP
Satin Nickel : SN
Bronze : BZ
Custom Color Minimum order quantity of 20 pieces?: CC

No Driver : 0
Non-Dimmable : N
ELV Dimmable : E
0-10V Dimmable to 1% : Z
BubblyNet : B
Lutron™ Lutron EcoSystem ?: L
DALI : D
Eldo DMX (Remote-Mount Only Speak with Zaniboni Rep)?: X
Low Voltage CC2CV Price does not include power supply?: V

No Housings Option when product is installed in Low Voltage - Class 2?: 00
Class 2, Non-IC Remote Driver Only?: D0
Airtight Enclosure : E0
Chicago Plenum : F0
Title 24 for Residential : G0
Retro-Fit Enclosure : R0
Retro-Fit for Lutron™ : RL
Class 1, IC : A0
Class 1, Non-IC : B0
Class 1 Mini, IC The Class 1 Mini I/C is not available for 18W?: AS
Class 1 Mini, Non-IC Class 1 Mini Non I/C is not available for 18W?: BS
Class 2 Non IC + Retrofit : DR

Dry IP 20 : D

Note: Crossed out features are unavailable for the selected configuration. By selecting other options from the left hand columns above, you can view which selections would allow for the desired feature. The power option and the light beam affect the height of the fixture. Check the "Product Height" table under "Dimensions/Drawings" on the spec sheet.

The Luna 2 Antiglare offers a solution for minimizing discomfort when looking directly at downlights. Both contractors and lighting designers appreciate its versatility, with numerous options for both internal components and external design.
